Model Number
AUC-18UR4SSAA2
AUC-24UR4SFGA1
AUC-36UR4S1AGA
AUC-48UR6SPFA
AUC-60UR6SPFA
Indoor model
AUC-18UR4SAA2
AUC-24UR4SGA
AUC-36UR4SGA
AUC-48UR4SFA
AUC-60UR4SFA
Outdoor model
AUC-18U4SS
AUC-24U4SF1
AUC-36U4S1A
AUC-48U6SP
AUC-60U6SP
Power supply (Indoor)
V-ph-Hz
220~240-1-50
220~240-1-50
220~240-1-50
220~240-1-50
220~240-1-50
Power supply (Outdoor)
V-ph-Hz
220~240-1-50
220~240-1-50
220~240-1-50
380-415-3-50
380-415-3-50
Cooling
Capacity
W
5200(1990-5570)
7200(2700-7850)
9800(3200-10000)
12600(5500-13500)
17000(6200-18000)
Input
W
1680
2240
3450
3720
5095
Current
A
7.50
10.20
15.00
6.50
9.80
Heating
Capacity
W
6200(1690-6550)
8500(2770-9000)
11200(2900-12000)
15000(4000-18000)
20000(5600-21000)
Input
W
1820
2350
3100
3950
5450
Current
A
8.2
10.7
13.0
7.0
10.3
Indoor air flow Rated (Hi/Med/Lo)
m3/h
850/730/630
1100/950/800
1800/1420/1210
2000/1800/1500
2000/1800/1500
Indoor air flow Rated (CFM)
CFM
500/429/370
647/558/470
1058/835/711
1175/1060/880
1175/1060/880
ESP
Rated
Pa
NA
NA
NA
NA
NA
Range
Pa
NA
NA
NA
NA
NA
Indoor noise level (Hi/Med/Lo)
dB(A)
47/44/41
43/38/20
53/50/45
50/47/44
50/47/44
Indoor Unit

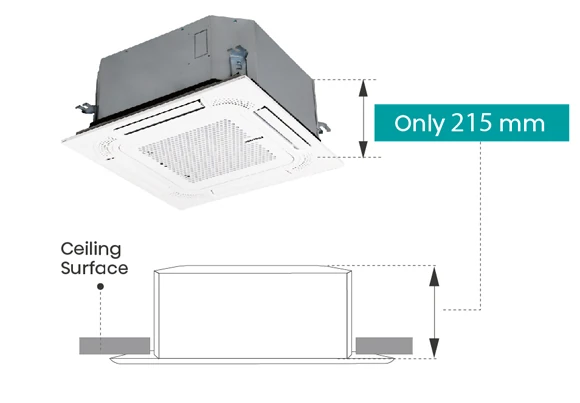

Dimension (WxHxD)
mm
650x270x570
840x248x840
840x248x840
840x298x840
840x298x840
Packing (WxHxD)
mm
770x310x750
996x370x956
996x370x956
996x420x956
996x420x956
Net/Gross weight
kg
21/25.5
28/37
30/39
29/38
29/38
Design Pressure (H/L)
MPa
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
Drainage water pipe diameter
mm
dΦ21
dΦ32
dΦ32
dΦ32
dΦ32
Refrigerant piping
Liquid side / Gas side
mm
Φ6.35/Φ12.7(1/4"/1/2")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ19(3/8"/3/4")
Φ9.52/Φ19(3/8"/3/4")
Outdoor noise level (sound pressure)
dB(A)
50
56
60
60
62
Outdoor Unit
Dimension (WxHxD)
mm
810x584x281
860x670x310
950x840x340
950x1385x340
950x1385x340
Packing (WxHxD)
mm
940x420x540
990x450x730
1110x980x460
1110x1527x460
1110x1527x460
Net/Gross weight
kg
36/40
51/57
70/74
101/107
108/112
Refrigerant type / Quantity
Type
R410A
R410A
R410A
R410A
R410A
Charged volume
kg
1.24
1.70
2.10
3.00
3.50
Design Pressure (H/L)
MPa
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
Refrigerant piping
Liquid side / Gas side
mm
Φ6.35/Φ12.7(1/4"/1/2")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ19(3/8"/3/4")
Φ9.52/Φ19(3/8"/3/4")
Max pipe length
m
30
30
30
50
50
Max difference in level
m
15
15
15
30
30
Ambient temperature
Cooling
°C
-15~48
-15~48
-15~48
-15~48
-15~48
Heating
°C
-10~24
-10~24
-10~24
-10~24
-10~24
Qty'per 20'/40'/40'HQ
Indoor+Outdoor
62/130/158
40/78/88
30/60/72
24/47/47
24/47/47
