Model Number
AUV-18UR4SSA2
AUV-24UR4SFA1
AUV-36UR4S1AB
AUV-48UR6SPC
AUV-60UR6SPC

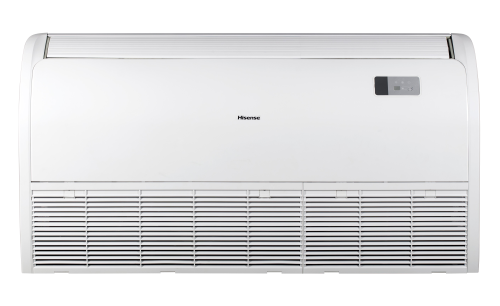

Indoor model
AUV-18UR4SA2
AUV-24UR4SA1
AUV-36UR4S1A
AUV-48UR4SC
AUV-60UR4SC
Outdoor model
AUW-18U4SS
AUW-24U4SF1
AUW-36U4S1A
AUW-48U6SP
AUW-60U6SP
Power supply (Indoor)
V-ph-Hz
220~240-1-50
220~240-1-50
220~240-1-50
220~240-1-50
220~240-1-50
Power supply (Outdoor)
V-ph-Hz
220~240-1-50
220~240-1-50
220~240-1-50
380~415-3-50
380~415-3-50
Cooling
Capacity
W
5200(1830-5730)
7200(2700-7850)
9800(3200-10000)
12600(5500-13500)
17000(6200-18000)
Input
W
1680
2390
3500
3920
5295
Current
A
7.40
10.90
15.00
7.50
10.80
Heating
Capacity
W
6200(1770-6620)
8500(2770-8966)
11500(3200-12000)
15300(4000-18000)
20500(6400-21000)
Input
W
1717
2350
3260
4200
5650
Current
A
7.5
10.7
14.0
8.0
11.3
Indoor air flow Rated (Hi/Med/Lo)
m3/h
800/730/640
1100/950/800
1650/1600/1500
2000/1800/1500
2000/1800/1500
Indoor air flow Rated (CFM)
CFM
470/429/376
647/558/470
970/941/882
1175/1060/880
1175/1060/880
ESP
Rated
Pa
NA
NA
NA
NA
NA
Range
Pa
NA
NA
NA
NA
NA
Indoor noise level (Hi/Med/Lo)
dB(A)
41/38/35
52/48/45
55/54/52
55/53/51
55/53/51
Indoor Unit
Dimension (WxHxD)
mm
990x680x230
990x680x230
1285x680x230
1580x680x230
1580x680x230
Packing (WxHxD)
mm
1100x820x350
1100x820x350
1400x820x350
1690x820x350
1690x820x350
Net/Gross weight
kg
30/35
30/35
37/44
47/54
47/54
Design Pressure (H/L)
MPa
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
Drainage water pipe diameter
mm
dΦ25
dΦ25
dΦ25
dΦ25
dΦ25
Refrigerant piping
Liquid side / Gas side
mm
Φ6.35/Φ12.7(1/4"/1/2")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ19.05(3/8"/3/4")
Φ9.52/Φ19.05(3/8"/3/4")
Outdoor noise level (sound pressure)
dB(A)
50
56
60
60
62
Outdoor Unit
Dimension (WxHxD)
mm
810x584x281
860x670x310
950x840x340
950x1386x340
950x1386x340
Packing (WxHxD)
mm
940x420x640
990x450x730
1110x980x460
1110x1527x460
1110x1527x460
Net/Gross weight
kg
36/40
51/57
70/74
101/107
108/112
Refrigerant type / Quantity
Type
R410A
R410A
R410A
R410A
R410A
Charged volume
kg
1.24
1.70
2.10
3.00
3.50
Design Pressure (H/L)
MPa
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
4.15/1.6
Refrigerant piping
Liquid side / Gas side
mm
Φ6.35/Φ12.7(1/4"/1/2")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ15.88(3/8"/5/8")
Φ9.52/Φ19.05(3/8"/3/4")
Φ9.52/Φ19.05(3/8"/3/4")
Max pipe length
m
30
30
30
50
50
Max difference in level
m
15
15
15
30
30
Ambient temperature
Cooling
°C
-15~48
-15~48
-15~48
-15~48
-15~48
Heating
°C
-10~24
-10~24
-10~24
-10~24
-10~24
Qty'per 20'/40'/40'HQ
Indoor+Outdoor
48/96/114
42/85/98
30/64/72
20/40/53
20/40/53
